The Soft Pendant represents a unique approach in lighting design, shifting from traditional metallics to a more neutral aesthetic with a focus on warm, diffused light. Here's a look at the innovative materials, the manufacturing process, and the key product specifications.
Innovation in Materiality: Why TPU?
The Soft Pendant is constructed from a coated steel frame that is then sprayed with Thermoplastic Polyurethane (TPU). This material was specifically chosen for its superior properties, which contribute to the pendant's distinctive look and performance:
- Flexibility and Elasticity: Allows for the smooth, near-spherical surface inspired by celestial bodies.
- Durability: Ensures the longevity and resilience of the shade.
- Transparency: Creates the signature warm, diffused, and flattering glow.
Manufacturing Process: The Cocooning Spray
The process involves precision welding and an automated spraying technique, with meticulous attention to detail at every stage:
- Frame Construction:
- The core is a coated steel frame made from welded steel rods.
- The number of circular rods varies by size: 32 circles on the 45cm shade and 72 circles on the 60cm shade.

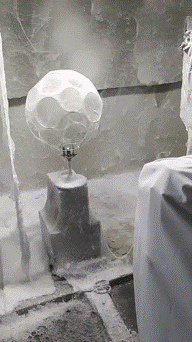

- TPU Spraying:
- The steel frame is attached to a motor and rotated.
- A robot arm precisely sprays the TPU material onto the rotating frame, creating a seamless "cocoon."
- It takes approximately 1 hour to produce 1 shade entirely.
- A 60cm shade requires a rotating time of up to 38 minutes, completing an impressive 2280 rotations.
- Curing/Drying:
- Each finished shade is hung for a full 24 hours before any further handling or assembly.
Key Features & Specifications
| Feature | Details |
|---|---|
| Material | Welded steel frame sprayed with TPU (Thermoplastic Polyurethane) |
| Glow | Warm, diffused, and flattering |
| Sizes (Shade) | 45cm and 60cm |
| Cable | New 350cm / 137.8in White fabric cable |
| Ceiling Rose | White gloss cone ceiling rose |
| Lamp Base | E27 |
| Max Wattage | Max 15W (Light source not included) |
| Dimmability | Mains Dimmable |
| Environment | Indoor, IP20/Dry Location |
| Customisation | The user can customise the feeling of the product by choosing the colour temperature and brightness of the light source. |
Design Benefits
The SOFT Pendant offers several design advantages:

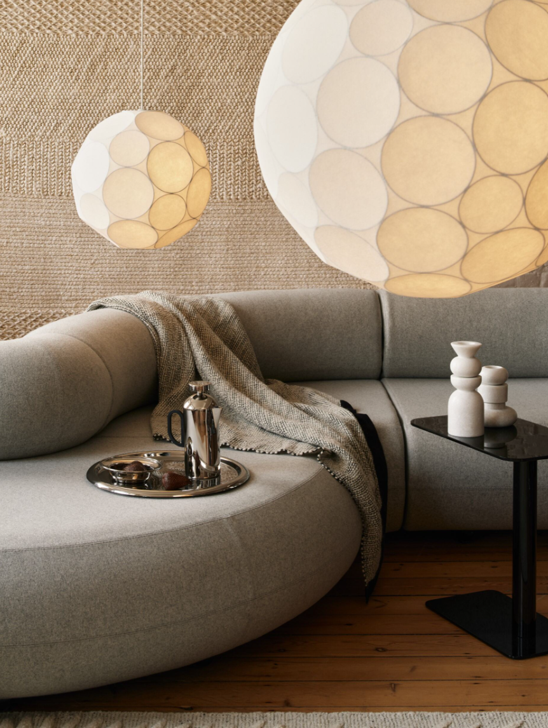

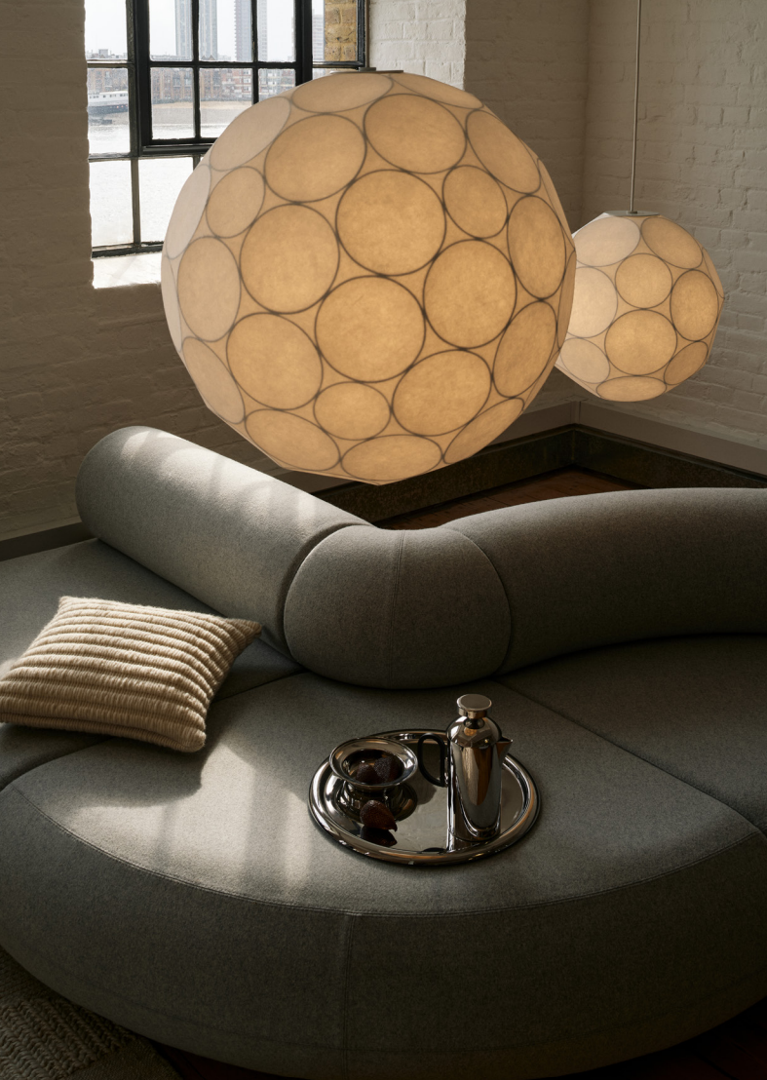

- Large-Scale & Lightweight: These are large-scale and space-filling pendants that are surprisingly lightweight.
- Clustering: The 45cm and 60cm sizes are designed to be hung together into striking, large clusters.
